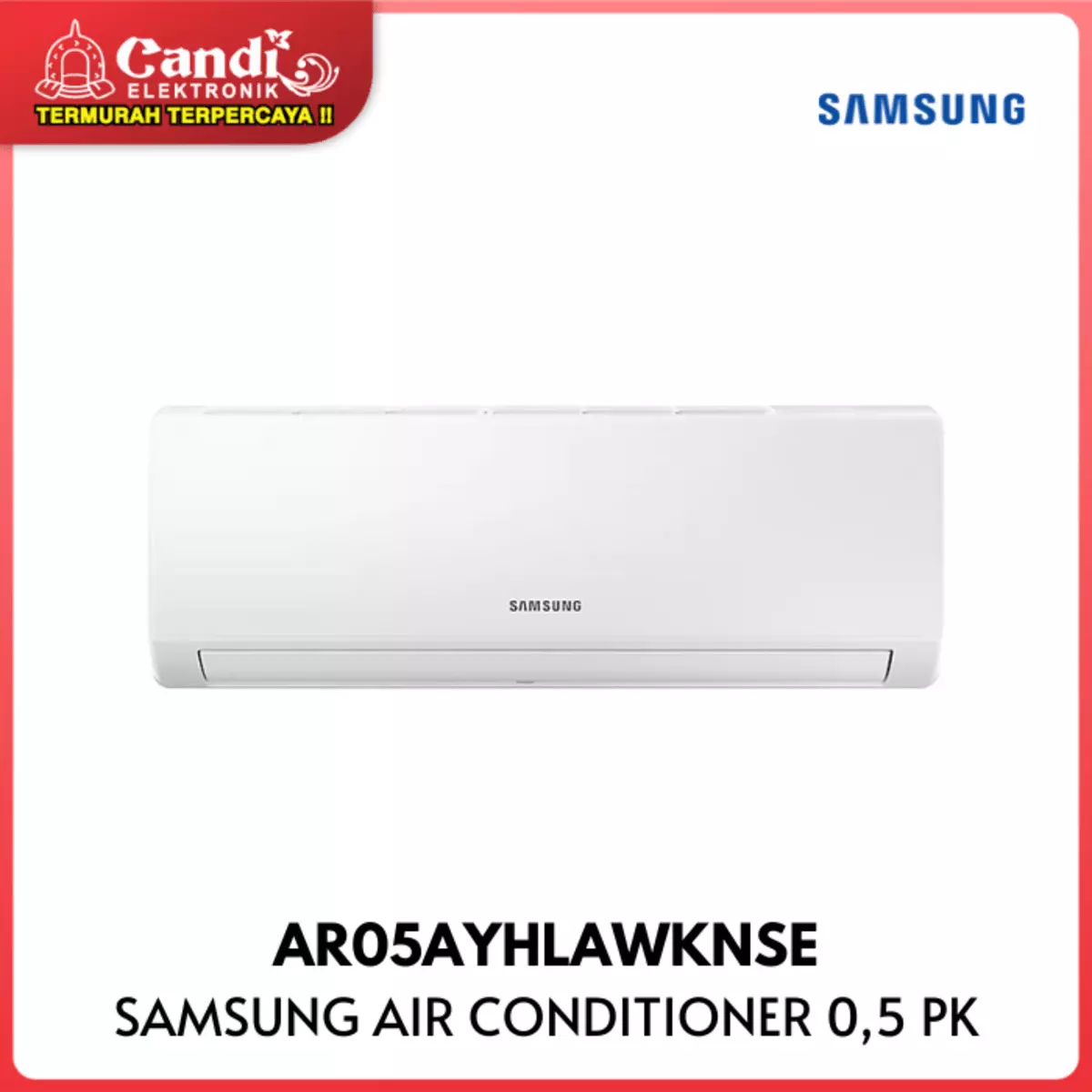

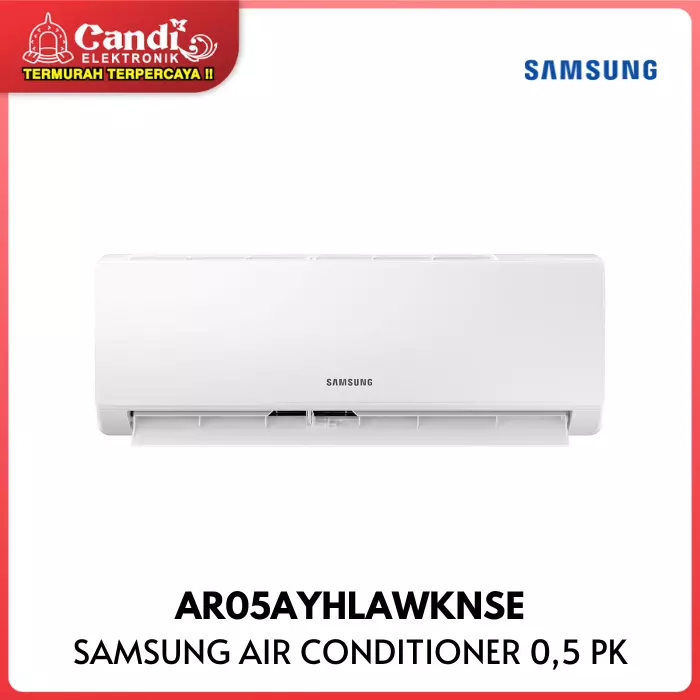

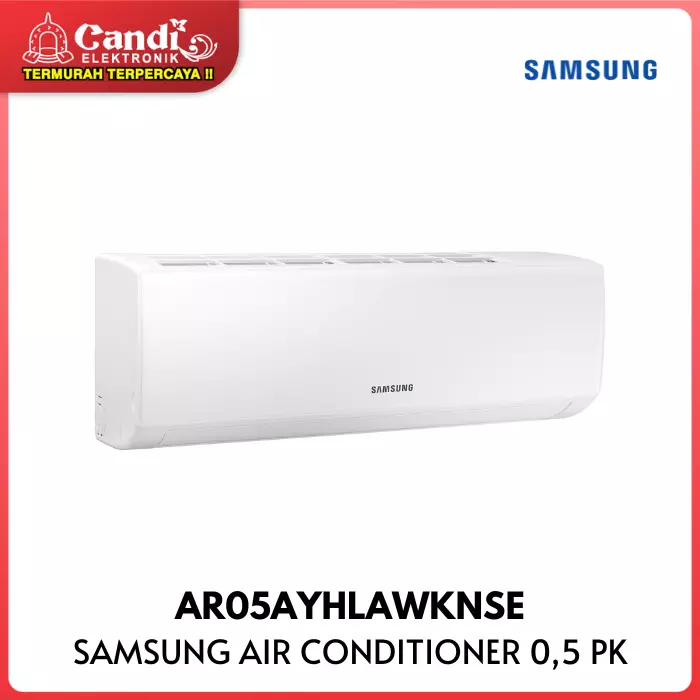

Ac Inverter Samsung

Spesifikasi : Capacity (Cooling, Btu/hr)

5000 Btu/hr :

Capacity (Cooling, kW) : 1.465 kW

EER (Cooling, W/W) : 3.06 W/W

Net Dimension (Outdoor, WxHxD, ㎜*㎜*㎜) : 777×290×498 mm

Detail Spesifikasi : Capacity

Capacity (Cooling, Btu/hr) : 5000 Btu/hr

Capacity (Cooling, Min - Max, Btu/hr) : 1706 ~ 6824 Btu/hr

Capacity (Cooling, kW) : 1.465 kW

Capacity (Cooling, Min - Max, kW) : 0.5 ~ 2.0 kW

Energy Efficiency : EER (Cooling, W/W)

3.06 W/W :

CSPF : 10.4

Energy Efficiency Class for cooling (Grade) : 4

Noise Level : Noise Level (Indoor, High/Low, dBA)

43 / 32 dBA :

Noise Level (Outdoor, High/Low, dBA) : 52.0 dBA

Electrical Data : Power Source(Φ/V/Hz)

1 / 220-240 / 50 :

Power Consumption(Cooling, W) : 485 W

Operating Current(Cooling, A) : 3.2 A

Physical specification : Gross Dimension (Indoor, WxHxD, ㎜*㎜*㎜)

764×325×272 mm :

Gross Dimension (Outdoor, WxHxD, ㎜*㎜*㎜) : 818×325×535 mm

Net Dimension (Indoor, WxHxD, ㎜*㎜*㎜) : 698×258×200 mm

Net Dimension (Outdoor, WxHxD, ㎜*㎜*㎜) : 777×290×498 mm

Gross Weight (Indoor, kg) : 8.3 kg

Gross Weight (Outdoor, kg) : 22.0 kg

Net Weight (Indoor, kg) : 6.5 kg

Net Weight (Outdoor, kg) : 20.0 kg

Loading Quantity (20/40/40Hft with Pipe) : 342

Technical Information : Piping Length (Max, m)

15 m :

Piping Height (Max, m) : 5 m

SVC Valve (Liquid (ODxL)) : 6.35

SVC Valve (Gas (ODxL)) : 9.52

Air Circulation (Cooling, ㎥/min) : 380 ㎥/min

Refrigerant (Type) : R32

Refrigerant (Charging, kg) : 0.325 kg

Refrigerant (Charging, tCO2e) : 0.22tCO2e

Low Ambient (Cooling, ℃) : 16~31 ℃

Outdoor Unit (Compressor Type) : Rotary

Outdoor Unit (Anti-Corrosion Fin) : Yes

Air Flow : Air Direction Control (Up/Down)

Auto :

Air Direction Control (Left/Right) : Manual

Air Flow Control Step (Cool/Fan) : Turbo/Hi/Lo

Air Purification : Easy Filter Plus (Anti-Bacteria)

Yes : Convenience

SmartThings : No

Filter Cleaning Indicatior : Yes

Indoor Temp. Display : Yes

24-Hour Timer : Yes

Operating Mode : Auto Mode

Yes :

Fast Cool : Yes

Good Sleep : Yes

Eco Mode : Yes

Dehumidification : Yes

Fan Mode : Yes

Smart : WiFi Embedded

No : App Connectivity

SmartThings App Support : No
